Hydrogen Sulfide Breakthrough Indicator (BTI2)
Filter Change Indicator
Item No. 406
dimensions:
Length = 114.3mm (4.5”)
Diameter = 50.8mm (2.0”)
Inlet = 1.5” Male NPT
Hydrogen Sulfide Breakthrough Indicator (BTI2) is reusable. Refill Kit Part Number: 406-5000
$101.43

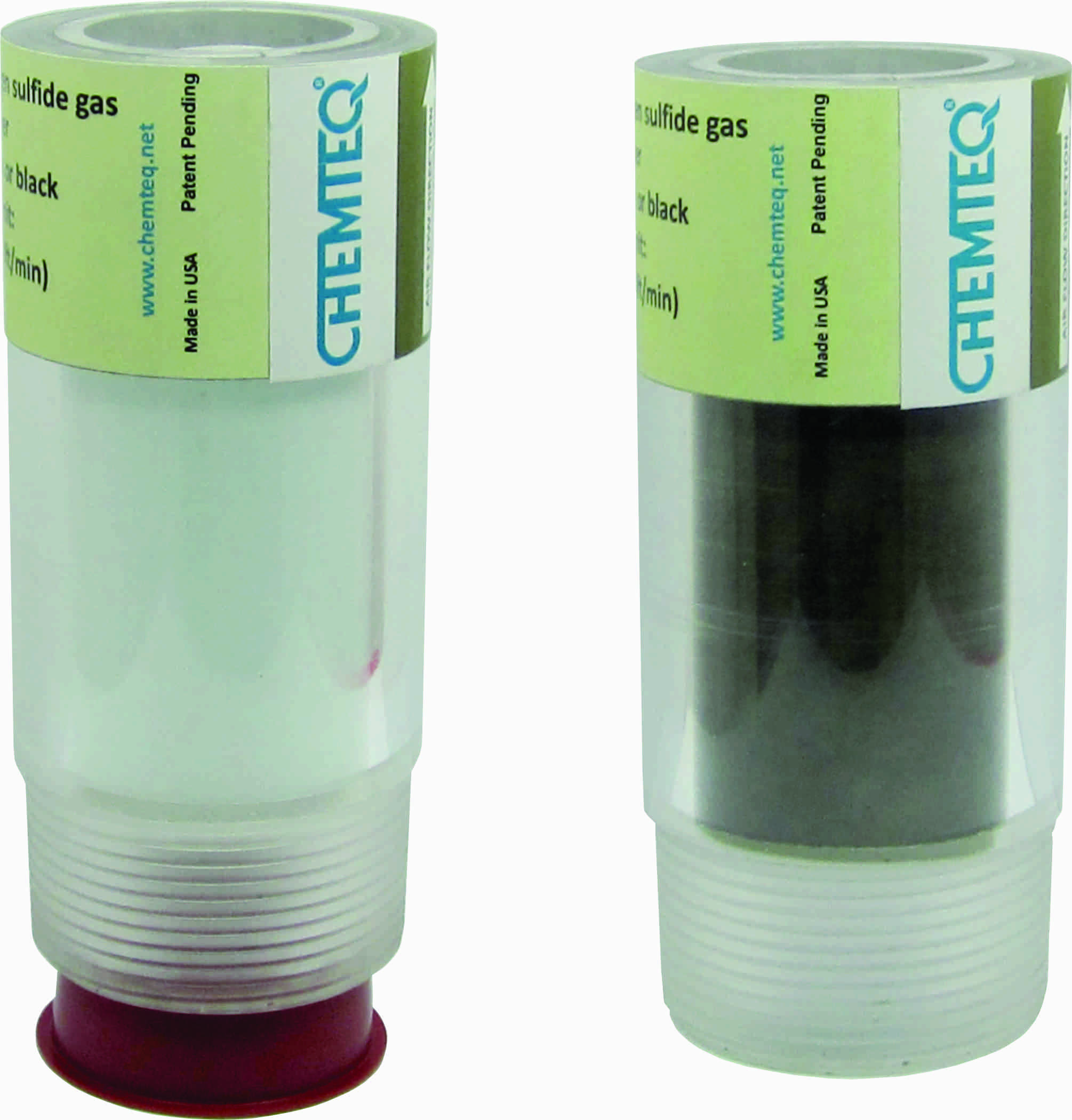

Hydrogen Sulfide Breakthrough Indicator (BTI2). Indicates the saturation filters. The indicator is reliable and cost effect for protection from toxic gases and vapors. Easily connect to the 1½ inch female NPT outlet of filter using the 1½ inch male NPT threading at the bottom of the indicator. It is sensitive to targeted gases or vapors. The indicator is 4.5-inch-tall, 2-inch diameter. Unique design allow you can observe the bright vibrant color change from all directions.
Hydrogen Sulfide Breakthrough Indicator (BTI2) is reusable. Refill Kit Part Number: 406-5000
PN 406
Product Specifications
| a | Weight: | 175g (6.2oz) |
| b | Dimensions: | 11.43cm (4.5in), diameter 5.08cm (2.0in) |
| c | Inlet dimensions: | 1.5″ MNPT |
| d | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
| e | Operating humidity: | 5% RH to 85%RH |
| f. | Minimum detectable limit: | 1.0ppm•min at 30 cm/sec face velocity |
| g | Color change: | Light blue to black |
| h | Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
| i | Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
| j | Service life: | 2 years |
